Connect Your AI Assistant (MCP)

Shoal runs a Model Context Protocol (MCP) server, so you can drive your Shoal platform straight from the AI assistant or editor you already use. Once connected, your assistant can browse the shared blueprint templates, create your own projects and environments, set environment variables, and inspect your deployment graph - all as you, using a key you control.

Any MCP-capable client works. This guide shows the eight most common ones. The setup is always the same three steps: create an API key, point your client at the server URL, and pass the key in the X-Api-Key header.

1. Create an API key

Your assistant authenticates to Shoal with an API key scoped to one of your spaces.

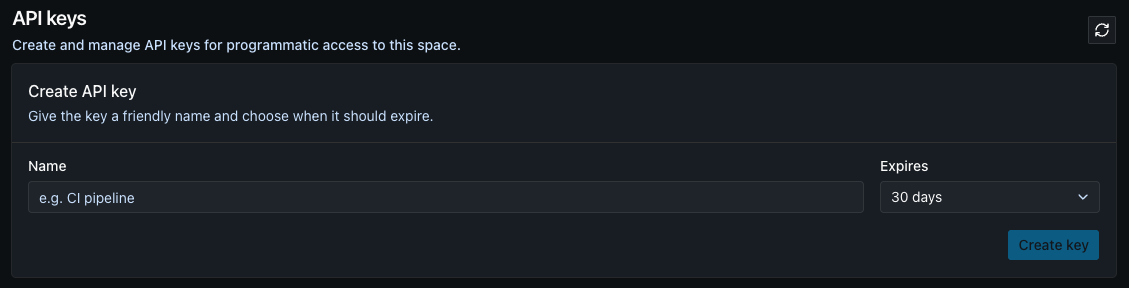

Go to API keys for your space at app.shoalstack.com/spaces/<space>/api-keys, where <space> is your space handle (the slug you see in the URL, e.g. my-team).
Click Create key, give it a Name you'll recognise (e.g. Claude Desktop), and choose when it should Expire - 30, 60, 90 days, 1 year, or Never. The default is 30 days.

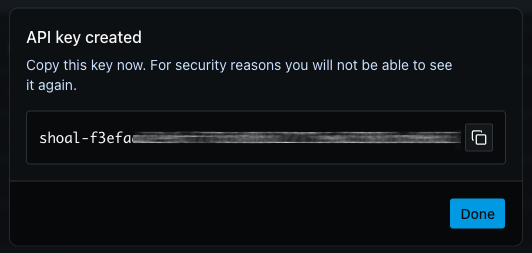

Click Create key. Your key is shown once - copy it now.

You only see the key once

For security, Shoal shows the plaintext key a single time and never again. Copy it straight away and store it somewhere safe. Lost it? Just revoke the old one and create a new key.

Revoking a key

To turn off access, click the red Revoke button on the key's row. Revocation takes effect immediately - any assistant using that key stops working at once. Create a fresh key to reconnect.

2. Your MCP server details

You'll need these three values for every client below:

Server details

Field	Value
URL	`https://api.shoalstack.com/shoal-chatbot-service/mcp`
Transport	Streamable HTTP
Auth header	`X-Api-Key: <your-api-key>`

3. Add it to your assistant

Pick your client. In every snippet, replace YOUR_API_KEY with the key you created in step 1.

Claude Gemini ChatGPT (OpenAI) Grok (xAI) Cursor Windsurf Cline VS Code

Claude Code (CLI) - add the server in one command:

claude mcp add --transport http shoal-mcp-server https://api.shoalstack.com/shoal-chatbot-service/mcp --header "X-Api-Key: YOUR_API_KEY"

Claude Desktop - open Settings → Connectors → Add custom connector, paste the URL above, and add a custom header X-Api-Key with your key.

More detail: Claude MCP docs.

Gemini CLI - add the server to ~/.gemini/settings.json:

{
  "mcpServers": {
    "shoal-mcp-server": {
      "httpUrl": "https://api.shoalstack.com/shoal-chatbot-service/mcp",
      "headers": { "X-Api-Key": "YOUR_API_KEY" }
    }
  }
}

More detail: Gemini CLI MCP docs.

In ChatGPT, open Settings → Connectors → Create (or Add custom connector), then:

Paste the URL https://api.shoalstack.com/shoal-chatbot-service/mcp.
Add a custom header X-Api-Key set to your key.

Custom connectors need the right plan

Adding your own remote MCP server requires a ChatGPT plan with custom connectors / developer mode enabled (Plus, Pro, Business, or Enterprise). The exact menu wording changes as ChatGPT evolves - see OpenAI's connector docs.

Grok can call remote MCP servers.

Grok app - open Settings → Connectors → Add MCP server (or Add custom connector), paste the URL https://api.shoalstack.com/shoal-chatbot-service/mcp, and add a custom header X-Api-Key with your key.
Grok CLI / MCP-capable Grok client - point it at the same URL with an X-Api-Key header, using the client's mcpServers config (same shape as the Cursor tab).

xAI MCP support is newer

Grok's MCP connector support is relatively new and the exact menu wording changes as xAI iterates. If you don't see an MCP / custom-connector option, check xAI's documentation for the current steps.

Create .cursor/mcp.json in your project (or ~/.cursor/mcp.json for all projects):

{
  "mcpServers": {
    "shoal-mcp-server": {
      "url": "https://api.shoalstack.com/shoal-chatbot-service/mcp",
      "headers": { "X-Api-Key": "YOUR_API_KEY" }
    }
  }
}

Then enable the server under Settings → MCP. More detail: Cursor MCP docs.

Open Windsurf Settings → Cascade → MCP Servers → Manage → View raw config, and add the server to ~/.codeium/windsurf/mcp_config.json:

{
  "mcpServers": {
    "shoal-mcp-server": {
      "serverUrl": "https://api.shoalstack.com/shoal-chatbot-service/mcp",
      "headers": { "X-Api-Key": "YOUR_API_KEY" }
    }
  }
}

Then click Refresh. More detail: Windsurf MCP docs.

In the Cline panel, open the MCP Servers icon → Configure MCP Servers, then add to cline_mcp_settings.json:

{
  "mcpServers": {
    "shoal-mcp-server": {
      "type": "streamableHttp",
      "url": "https://api.shoalstack.com/shoal-chatbot-service/mcp",
      "headers": { "X-Api-Key": "YOUR_API_KEY" }
    }
  }
}

More detail: Cline MCP docs.

With GitHub Copilot, create .vscode/mcp.json in your workspace:

{
  "servers": {
    "shoal-mcp-server": {
      "type": "http",
      "url": "https://api.shoalstack.com/shoal-chatbot-service/mcp",
      "headers": { "X-Api-Key": "${input:shoal-api-key}" }
    }
  },
  "inputs": [
    {
      "id": "shoal-api-key",
      "type": "promptString",
      "description": "Shoal API key",
      "password": true
    }
  ]
}

Using ${input:...} keeps your key out of the committed file - VS Code prompts for it once. More detail: VS Code MCP docs.

Verify it works

Ask your assistant to list the available Shoal blueprints - the shared, reusable templates on the platform. Behind the scenes that calls the read-only list_blueprints tool - if you get a list back, you're connected and ready to go. From there you can ask it to create a project of your own, add an environment, set variables, and more.

Not connecting?

Check the key hasn't been revoked or expired under Space → API keys.
Confirm the header name is exactly X-Api-Key.
Make sure you copied the whole key with no extra spaces.
Restart the client after editing its config file so it reloads the server.

New to Shoal? Start with the Initial Setup guide to create your first space and project.
